Understanding Memory Cells in Computers

Memory cells are the basic storage units in computer memory. They use capacitors holding electrical charges to store data as binary values. Various types of cells make up this technology, such as SLC (Single-Level Cell), MLC (Multi-Level Cell), eMLC (Enterprise Multi-Level Cell), TLC (Triple-Level Cell), and QLC (Quadruple Level Cells). In this blog post, we will explore these different types of memory cells and understand how they work together in computer memory!

How does a Memory Cell Work?

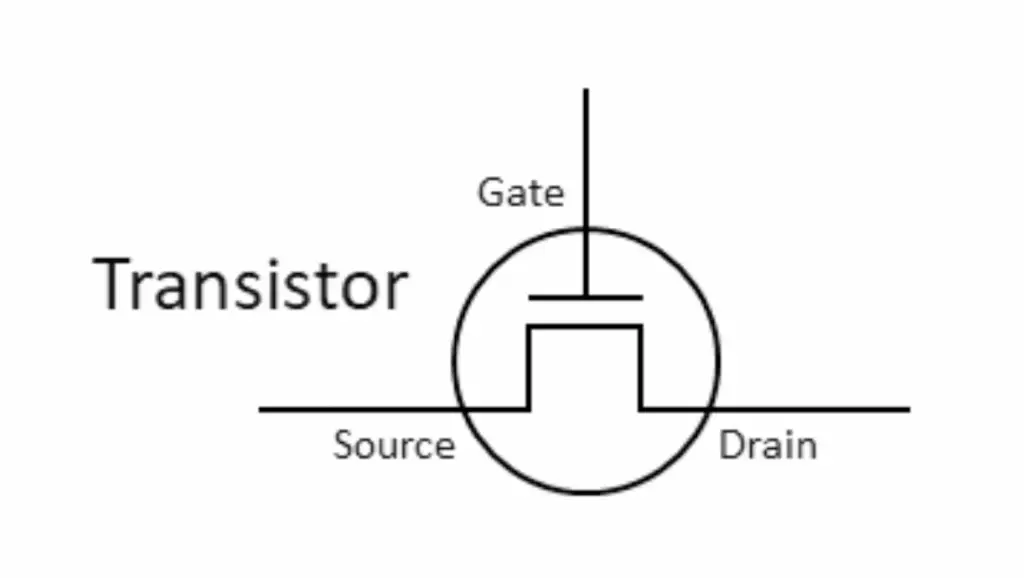

In its basic form, a memory cell consists of a transistor and a capacitor. A transistor is an electrical device used to switch or amplify signals. It has a source and a gate which are two electrical pathways that are used to apply a voltage. When voltage is applied to the gate, the gate “opens”, allowing electrical current to flow through the transistor and out of the drain. When a voltage is applied to the source but not to the gate, the current is blocked from flowing across.

A transistor is attached to a capacitor which is a device that can store charge. Once the gate opens, current flows across and charges up the capacitor.

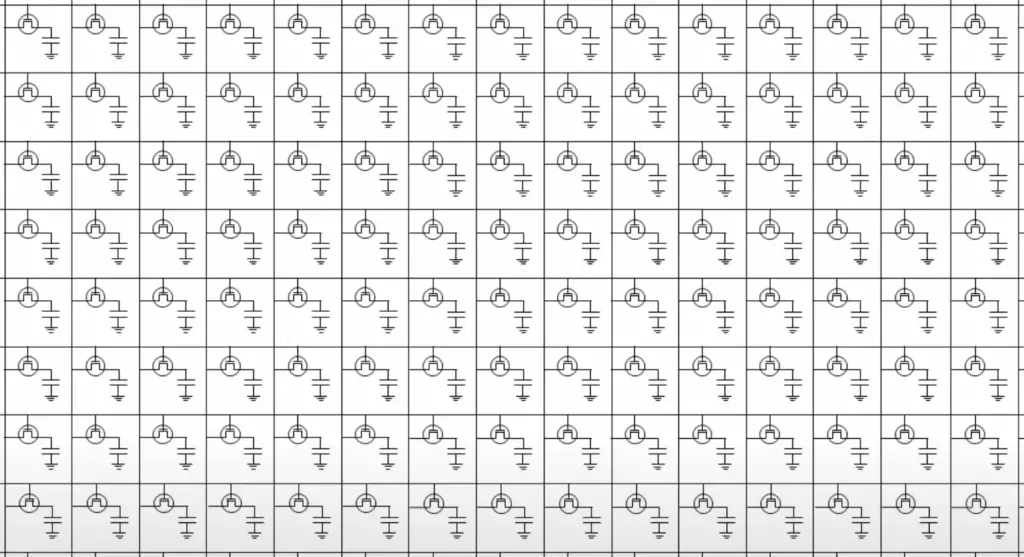

Once the capacitor is charged, the gate closes, and the capacitor remains charged. That charge represents a bit of information. When the capacitor is charged, it represents a binary 1. When it is discharged, it represents a binary 0. In modern memory systems, these cells are represented by very tiny structures on the scale of single-digit nanometers. They are arranged in grids. Physically, they are etched into semiconductor materials using advanced lithography.

SLC (Single-Level Cell) Memory Cells

SLC memory cells use two transistors and one capacitor per bit of information stored, making them smaller than other types of memory cells such as MLCs (Multi-Level Cell). They also require less power consumption due to their low voltage requirements, making them ideal for battery-powered applications. Additionally, they have faster read/write speeds than other types of memory cells because the charge on the capacitor is used directly as the data value without any conversion required.

Advantages of SLC Technology: One major advantage of using SLC technology is its reliability; since only two states are possible with each cell (charged or discharged), there is a lower risk that incorrect data will be written due to noise or interference from outside sources. Furthermore, since it requires fewer components than other types of memory cells, it has longer life cycles than most alternatives. Finally, its small size allows for greater storage density in a given area when compared with larger memories such as DRAMs and SRAMs.

Despite its advantages over other technologies, there are some drawbacks associated with using single-level cell technology, including lower write speeds compared to multi-level cell memories and limited scalability when trying to increase capacity beyond what’s available in existing designs. Additionally, while they offer better performance at lower voltages than traditional DRAMs and SRAMs do at higher voltages, this comes at the cost of increased power consumption during idle periods where no operations are being performed on the device itself.

In summary, SLC Memory Cells offer reliable data storage with faster read-write speeds, high endurance, and small size compared to other memory cells. However, they have lower write speeds and higher power consumption than some alternatives.

MLC (Multi-Level Cell) Memory Cells

MLC (Multi-Level Cell) Memory Cells are a type of non-volatile memory that stores multiple binary values using capacitors. This technology is used in many modern devices such as smartphones, tablets, and laptops. It has become increasingly popular due to its ability to store more data than other types of memory cells while consuming less power.

Multi-level cell (MLC) technology allows for the storage of two or more bits per cell by utilizing multiple capacitors within each individual memory cell. The number of bits stored depends on the number of capacitors used; for example, an MLC with four capacitors can store up to four bits per cell. By storing multiple bits per cell, MLCs have higher density and capacity than single-level cells (SLCs). Additionally, they require less power since fewer transistors are needed to read/write data compared to SLCs.

Advantages of MLC Technology: One advantage of multi-level cells is their high density and capacity compared to other types of memory cells, such as SLCs or DRAMs, which makes them ideal for applications where space is limited but large amounts of data need to be stored quickly and reliably. Furthermore, because fewer transistors are required for reading/writing data from/to an MMC chip, it consumes less power than other types making it suitable for battery-powered devices like smartphones or tablets where energy efficiency is important. Finally, due to their increased bit count, they offer faster write speeds which can improve system performance significantly when dealing with large files or databases that require frequent updates or reads/writes operations from different locations at once.

To summarize, MLC memory cells are an efficient type of non-volatile memory that offers higher density and capacity than other types while consuming less power. Benefits include increased bit count, faster write speeds, improved system performance, and energy efficiency.

eMLC (Enterprise Multi-Level Cell) Memory Cells

EMLC (Enterprise Multi-Level Cell) memory cells are a type of non-volatile storage technology that can store multiple binary values using capacitors. This makes them ideal for enterprise applications, as they offer higher data density and faster write speeds than other types of memory cells.

EMLC memory cells use two or more transistors to store multiple bits per cell, which allows them to achieve higher densities than SLC or MLC memory cells. They also have lower power consumption and enable longer storage due to their increased number of levels per cell. In addition, the additional layers provide improved protection against data corruption caused by soft errors such as alpha particles and cosmic rays.

The main advantage of eMLC technology is its ability to store more information in less space than traditional single-level or multi-level cell technologies. This means that it can be used in smaller form factors with greater capacity, making it an attractive option for enterprise applications where size and capacity are important considerations. Additionally, because each bit is stored on two transistors instead of one, there is improved reliability compared to SLC or MLC technologies due to the redundancy provided by the extra layer.

In summary, eMLC technology offers improved reliability and higher data density in a smaller form factor compared to SLC or MLC memory cells, making it ideal for enterprise applications. Advantages include: – Increased capacity – Lower power consumption – Improved protection against soft errors – Greater redundancy.

TLC (Triple-Level Cell) and QLC (Quadruple-Level Cell) Memory Cells

TLC (Triple-Level Cell) and QLC (Quadruple-Level Cell) memory cells are the latest technologies in data storage. These types of memory cells store multiple binary values using capacitors, which allow for higher-capacity storage applications.

TLC and QCL memory cells are a type of non-volatile random access memory that uses three or four bits per cell to store data. This allows them to store more information than traditional SLC (Single Level Cell) or MCL (Multi Level Cell) memories, making them ideal for high-capacity storage applications such as flash drives, solid-state drives, digital cameras, smartphones, and other devices with limited space. The technology behind these types of memories is based on floating gate transistors that use capacitors to hold charge levels representing different binary values.

One major advantage of TCL/QCL technology is its ability to offer higher-density storage compared to SLC/MCL technologies due to their increased bit count per cell. Additionally, they require less power consumption when writing data since fewer write cycles are needed compared to other types of memories. Furthermore, they offer improved reliability over time as manufacturers continue improving their production processes for better quality control. Finally, these types of memories can be used in many different kinds of devices due to their small size and low-cost manufacturing process, which makes them very attractive from an economic standpoint.

Despite all the advantages mentioned above, there are some drawbacks associated with TLC and QLC technology as well. These include lower read speeds due to the increased number of bits stored per cell resulting in longer read times when accessing data from a device containing this type of memory chip inside. Additionally, since each capacitor has a finite amount of charge it can hold before becoming saturated, it will eventually end up offering slower write speeds over time. Finally, since these chips contain more components than traditional single-level or multi-level chips, they tend to be slightly more expensive than those alternatives.

To summarize TLC and QLC memory cells offer higher capacity storage than traditional SLCMCL technologies, improved reliability, lower power consumption when writing data, and a low cost manufacturing process. However, they have slower read speeds due to increased bit count per cell and may become saturated over time leading to slower write speeds.

Common Questions and Answers on Memory Cell Computing

How many memory cells are in RAM?

RAM (Random Access Memory) is a type of computer memory that stores data and can be accessed randomly. It typically consists of multiple memory cells, each containing a single bit of information. The exact number of memory cells in RAM depends on the specific model and size, but it can range from hundreds to millions or even billions. Generally speaking, larger RAM modules will have more memory cells than smaller ones.

What is a CMOS memory cell?

A CMOS memory cell is a type of semiconductor device used to store digital data. It consists of two transistors, one connected as a switch and the other as an inverter, which are both connected to a single capacitor. When power is applied, the capacitor stores either a 0 or 1 depending on whether the switch is open or closed respectively. A stored bit can then be read by sensing the voltage level on the capacitor when power is removed from it. The advantage of using CMOS memory cells over other types of memory technologies, such as DRAMs (Dynamic Random Access Memory), is that they require less power to operate and have higher-density storage capabilities.

What is a memory cell in Computing?

The memory cell is a fundamental component of computer systems, and it is often referred to as a “cell” or “storage element”. It stores information in the form of bits (binary digits) that can be accessed by the processor. Memory cells are typically made up of transistors and capacitors, which allow them to store data for long periods of time, even when power is removed. The size and type of memory cell used depend on the application, but all share the same basic function: storing data.

What are the main characteristics of a memory cell?

A memory cell is a basic unit of storage in a computer’s memory. It consists of one or more transistors, capacitors and other electronic components that store data as electrical charges. Memory cells are organized into larger structures called memory chips which can be used to store information such as programs, images, and text. The main characteristics of a memory cell include its capacity (the amount of data it can hold), speed (how quickly it can access the stored data), and stability (how long the stored data will remain intact). Additionally, some types of memory cells also feature error correction mechanisms to ensure reliable operations over time.

Conclusion

In conclusion, memory cell computing is an important part of computer memory and data storage. Memory cells are used to read, write and store data in the form of binary values stored on capacitors. There are several types of memory cells, such as SLC (Single-Level Cell), MLC (Multi-Level Cell), eMLC (Enterprise Multi-Level Cell), TLC (Triple-Level Cell), and QLC (Quadruple-Level Cell). Each type has its own advantages and disadvantages, depending on the application it is being used for.
